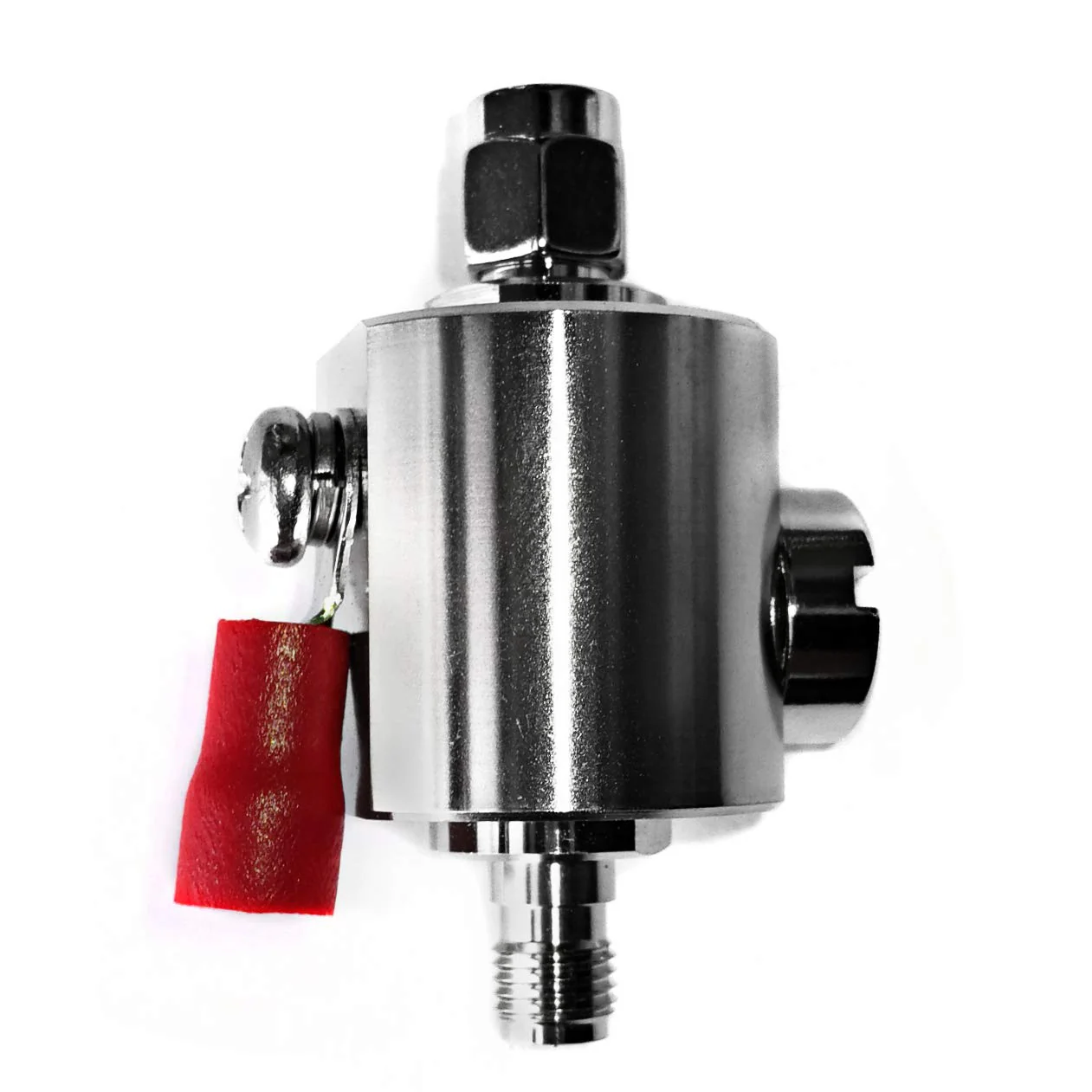

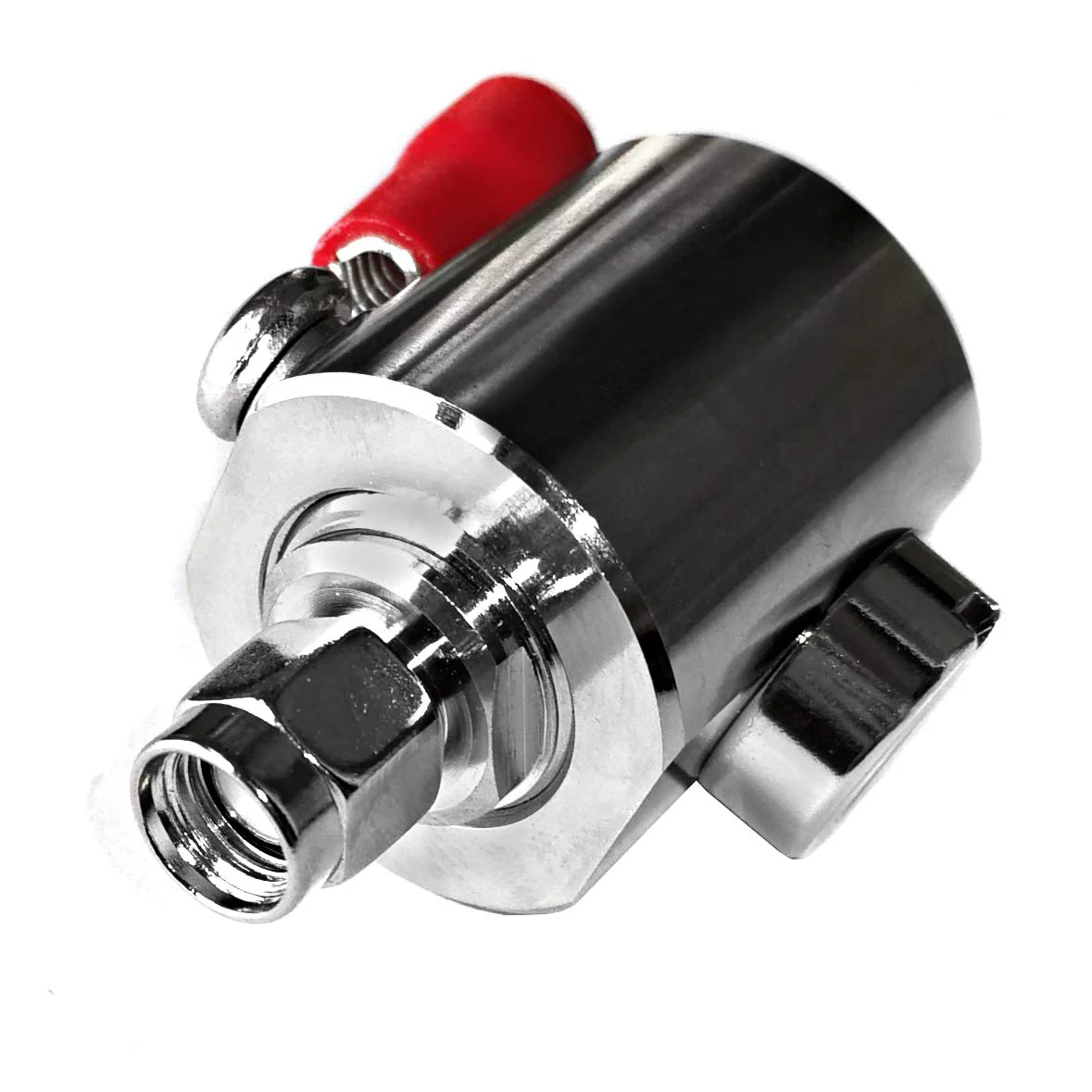

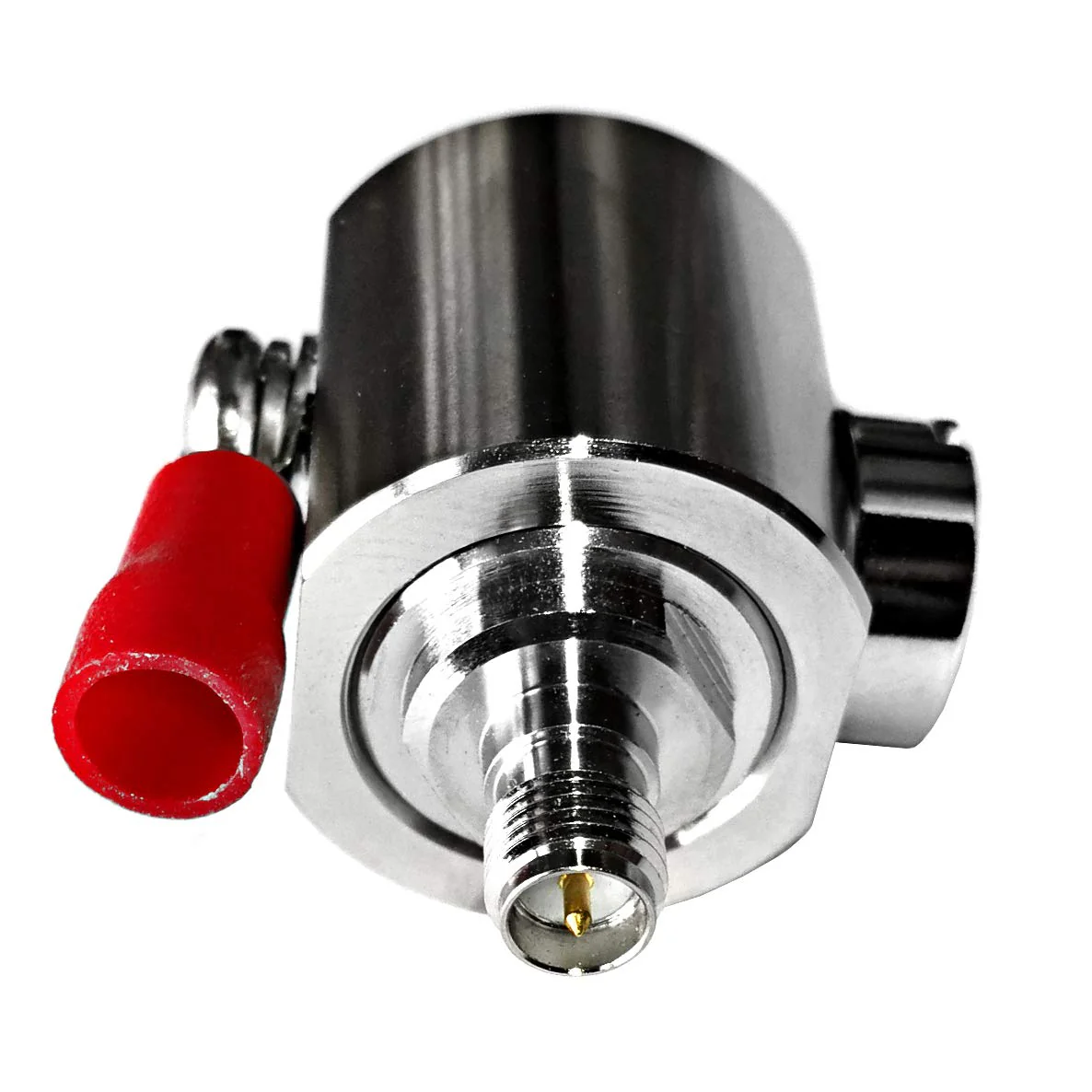

RP-SMA Male to RP-SMA Female RF Converter/Adapter with Coaxial Cable Lightning Surge Protection

UPC: 638362929877
Model Number: TP1606

RP-SMA Male to RP-SMA Female Tupavco TP1606 coaxial cable converter with lightning protection is made to convert your existing connector to the one that's
necessary on the other end, and at the same time protects your equipment (router, modem, computer, laptop) from lighting strikes.
Made only with high-quality materials - tri-metal brass plated body, bronze contacts and gold center conductor for a minimum signal loss and reliable connection all the time.

The lightning protector operates 0-6 Ghz which means that it supports both 2.4Ghz and 5Ghz devices,
2G, 3G, 4G, 5G, LTE cellular boosters but it will also support dual-band, tri-band and some non-standard wifi devices which are
operating in the already mentioned frequency range with a minimal signal loss.

50 Ohm impedance makes a coaxial surge protector an ideal solution for all 50 Ohm network boosters and repeaters. It also features a replacable gas discharge tube that protects connected equipment from electrical surges caused by lightning strikes.

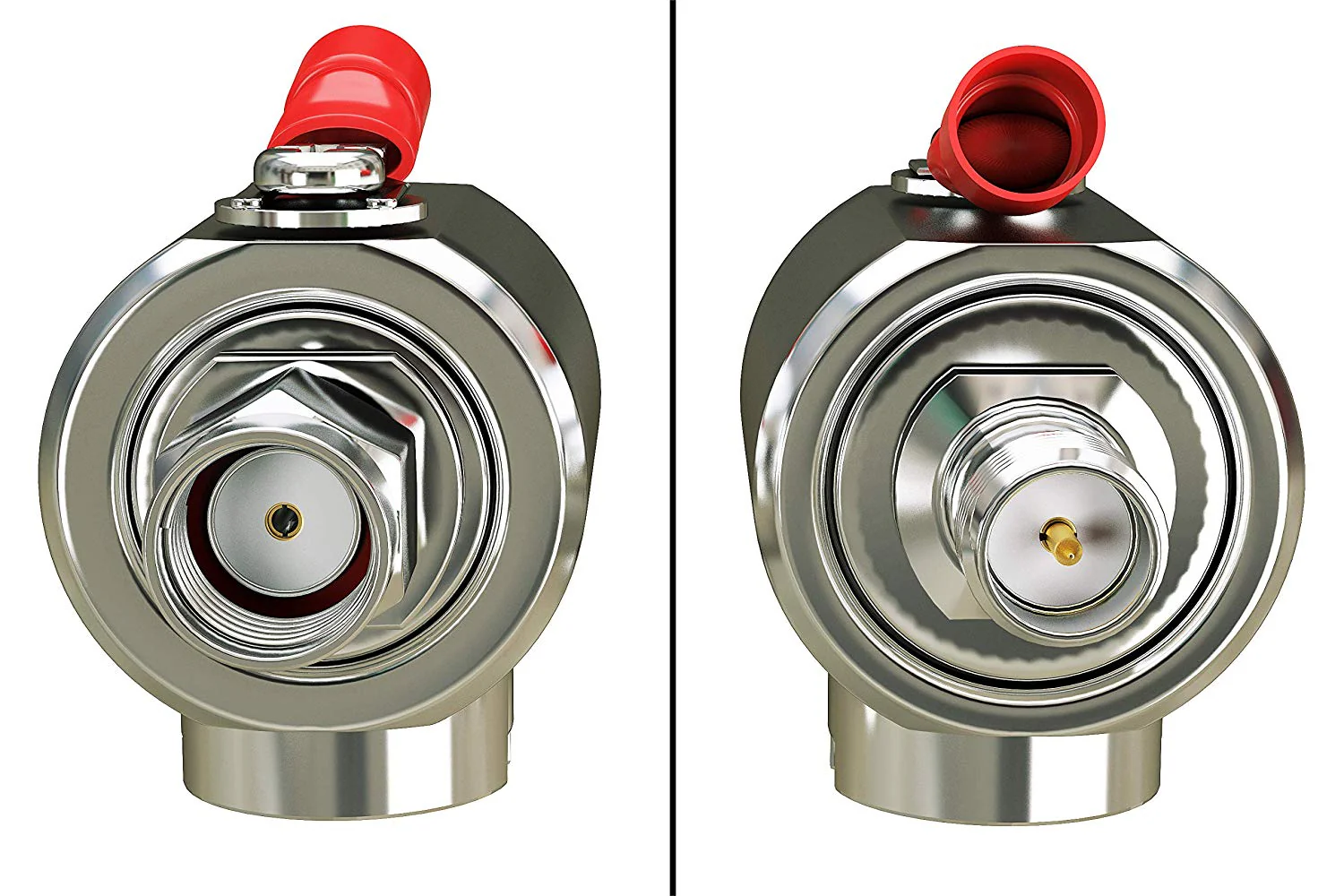

RP-SMA Male to RP-SMA Female
Freq Range DC-6GHZ
Protection : Gas Discharge Tube
Insersion Loss: <0.2
Return Loss: >20 dB
Discharge Current: 20 kAMP
Protection Level: 650 V
Impedance: 50 OHMS
Max Power: 25 W
Ingress Protection: IP 65
Grounding: Screw/LUG Y
Body: Brass
Contacts: Bronze
ISO-9000 Certified
VSWR: <1.2:1
Max Current Load: 10A
Nominal Discharge Current (kAMP): 5 kAMP
Max Discharge Current (kAMP): 20 kAMP
Impulse Current (kAMP): 2.5 kAMP
Operating Temp (degrees C): (-40 to +85) C
RoHS
