Rack Mount Rail Panel 19" with 16x DIN Ethernet Surge Protectors GbE PoE+ Gigabit 1000Mbs

UPC: 638362929488
Model Number: TP316

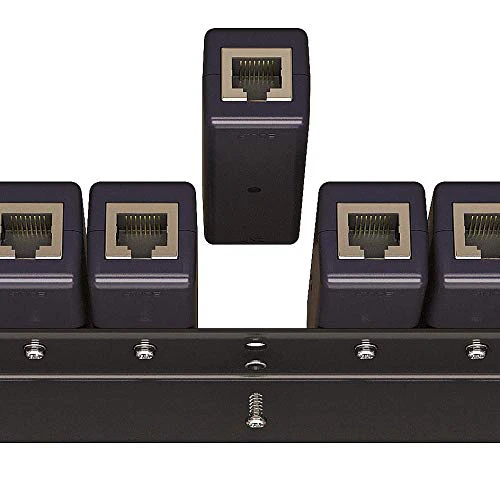

Assembly required (16 screws included); Clips included only for DIN mount;

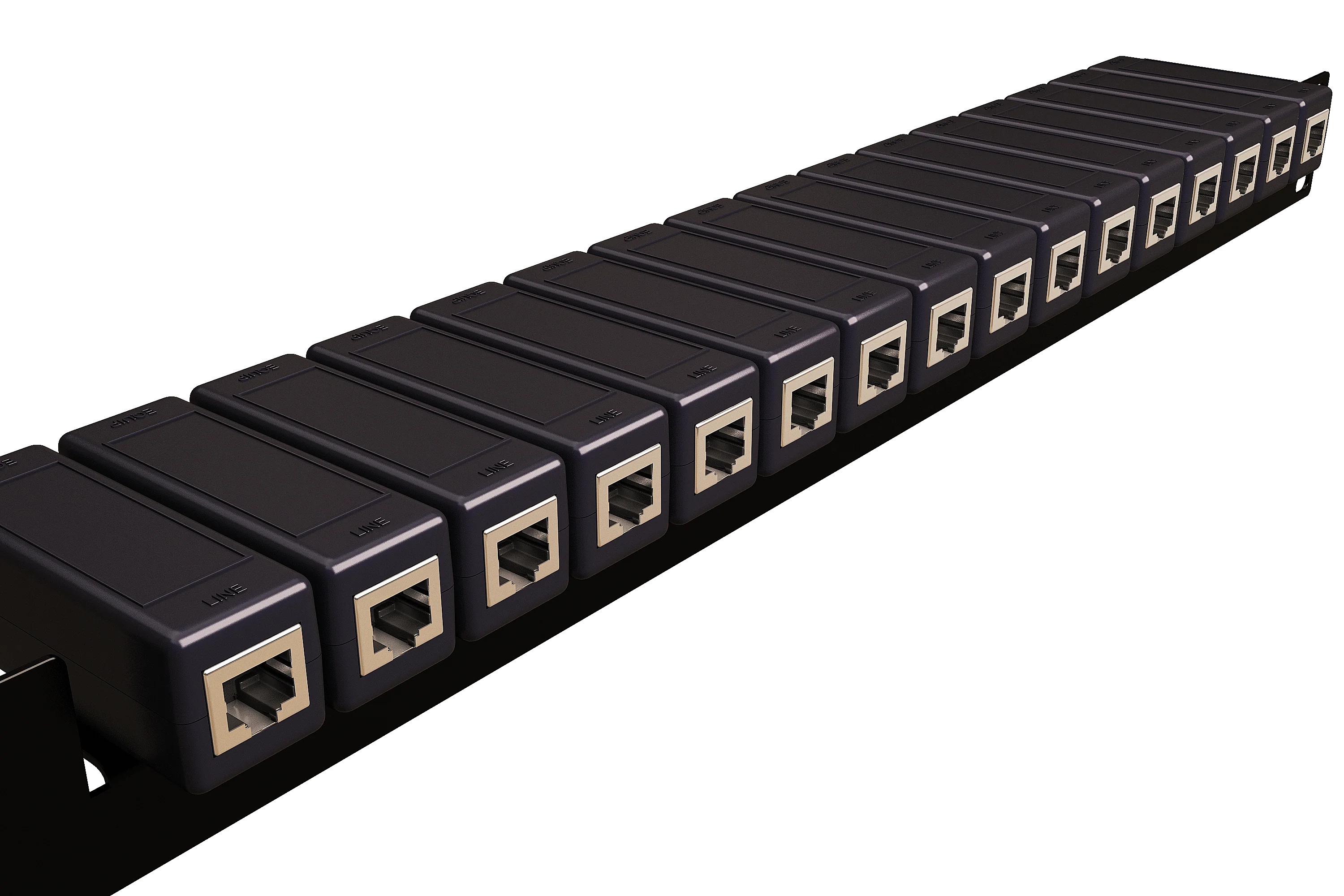

Rack Mount Rail 1U with 16x Ethernet Surge Protectors protects 16 lines, and it's ready to mount into rackmount slot on 19" (inch) (1U) data protection rack server cabinet panel.

Each Ethernet Surge Protector is a surge protection device (SPD) that is inserted inline on an RJ45 CAT6/CAT5/CAT5e cable to prevent damage of electronic networking equipment. Each single protector on the rail can be replaced with single compatible Tupavco item TP309 (ASIN: B078NKGPJC).

Powerful surges that the device protects against include direct lightning strikes, voltage spikes, or PoE overvoltages. Despite the primary protection (a direct strike to a line), the thunder arrestor also offers secondary protection, which will arrest EMF induced surges (nearby lightning ethernet).

Gas discharge tubes (GDTs) are developed to overcome some of the disadvantages of diode-based protectors like energy handling capability and is suitable for almost all surge, whether high or low frequency, it can be intercepted by a gas discharge tube surge arrester so it provides a rigorous spark discharge control performance.

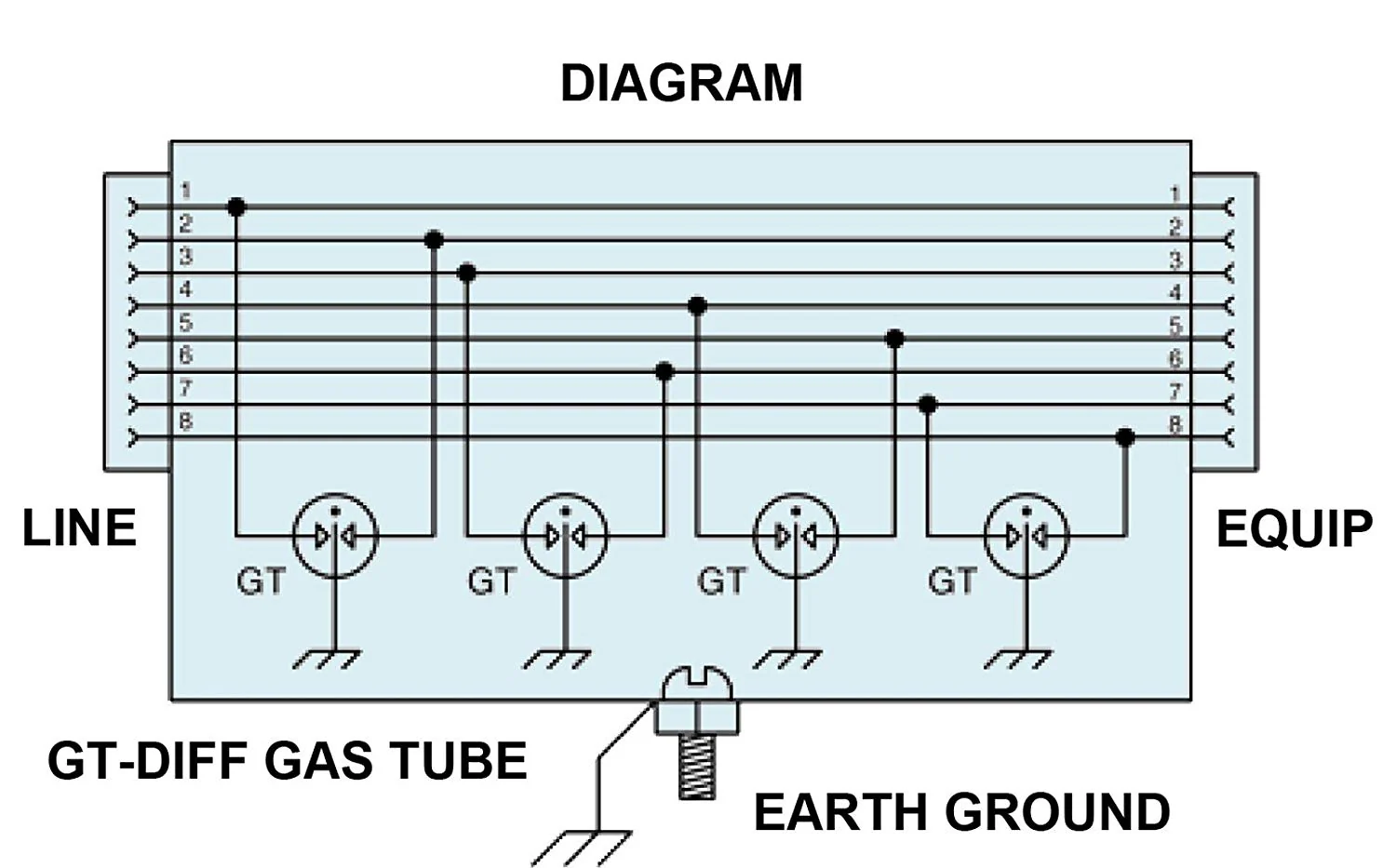

Ethernet Surge Suppressor TP316 use a Gas Discharge Tube (GDT) on all 4 pairs (8 wires). Gas discharge tubes dissipate the voltage transient through a contained plasma gas which harnesses excess voltage in the incoming power and releases it safely. It ensures the safety of a wide array of valuable components such as switch, router, modem, bridge, repeater, or any part of internet service network.

16 Lines/Ports RJ45 Lightning Protection for Gigabit 10/100/1000 (GbE) and High PoE+ Networks

The gigabit surge protector date rate of Gigabit 10/100/1000 (GbE) transfer supports an ultra-fast maximum data rate of 1 Gigabit per second (Gbps - 1000 Mbps) and does not affect the speed performance in the local area network. POE Surge Protector allows a single RJ-45 cable to provide both data connection and electric power to device such as wireless access point, IP and security camera, VoIP phone, computer and others. Surge Arrestor TP303 is designed to protect PSE (power-supply equipment) connected to a network from transient overvoltages. The lightning protector PoE supports both Mode A (Pins 1,2+ 3,6-) and B (7,8+ 4,5-) of the 802.3af standard. 802.3af (PoE) can deliver up to 15.4 watts per port with 12.95W at the powered device, while 802.3at (PoE+) can deliver up to 30 watts with 25.5 watts available to devices. PoE Plus is also known as High PoE.

Installation

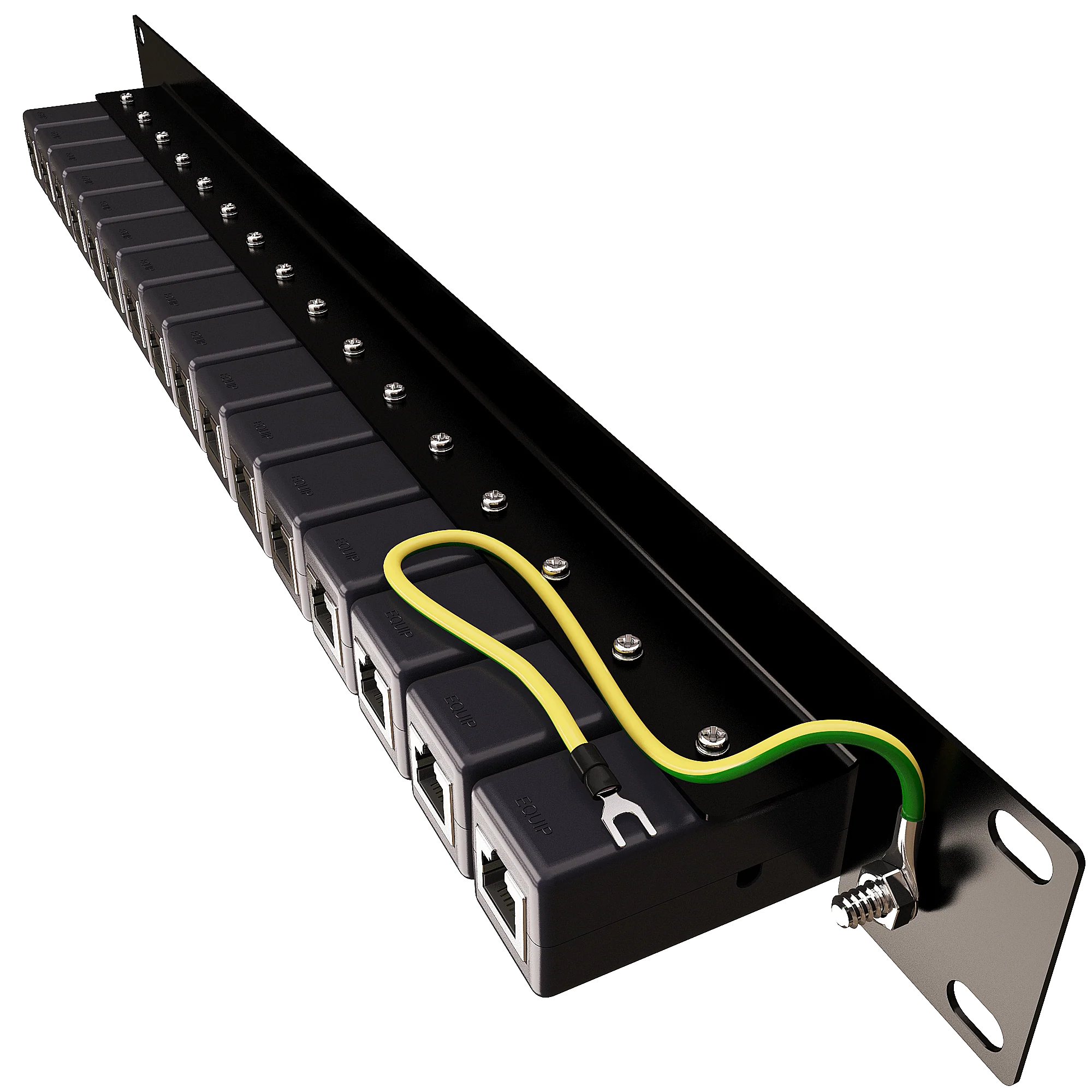

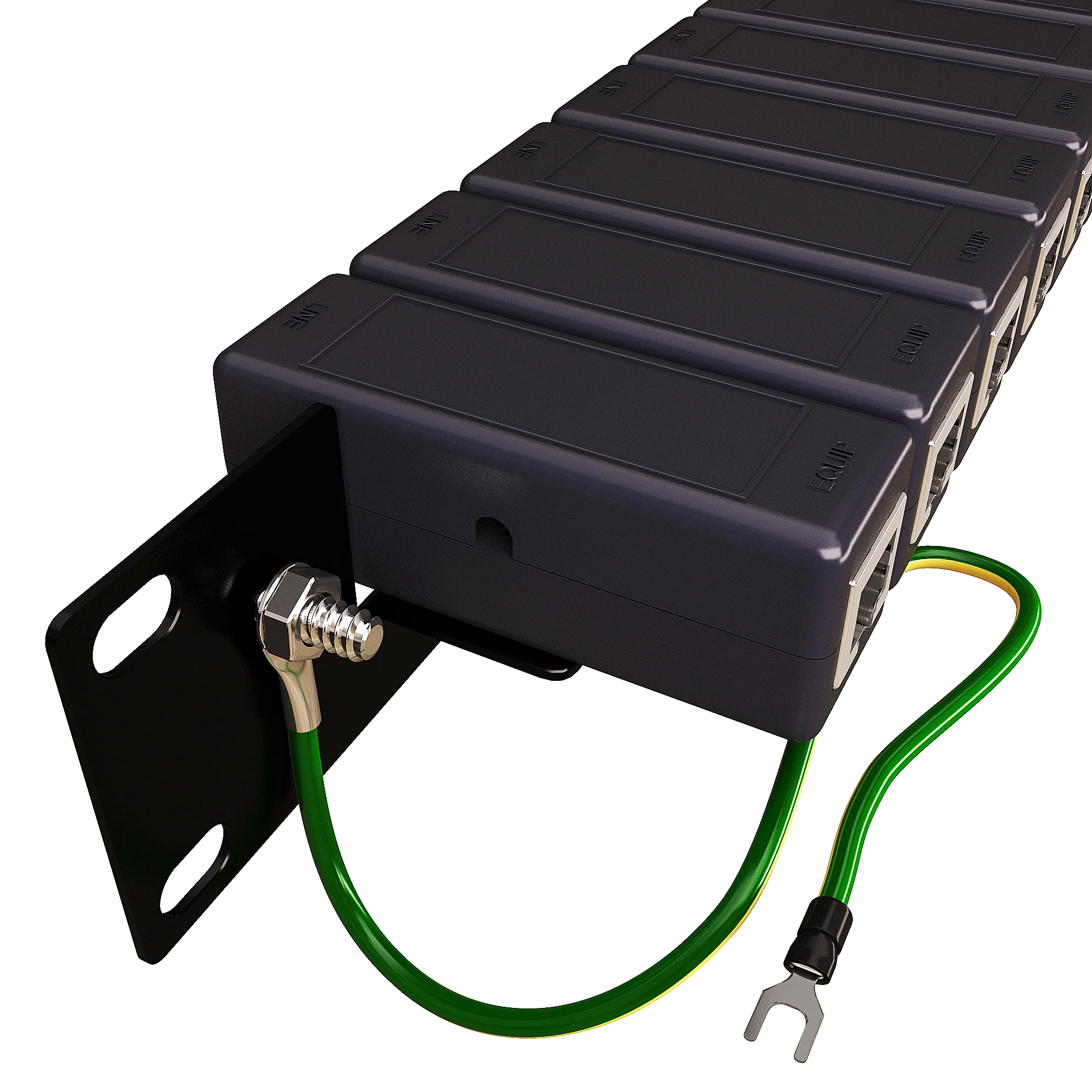

The rackmount must be properly grounded to work through the shortest path. Excess electricity will follow the path of least resistance. In most cases, a ground busbar on an electrical panel or network rack cabinet is already grounded and is typically the easiest way to ground the wire. Other options to ground RJ45 surge protector are grounding block on the breaker panel or grounding rod.

The lightning arrestor can be used with unshielded twisted pair (UTP) or shielded (STP) cables.

Protection Modes Line-Line, Line-Ground

The Line-to-Line ethernet surge protection mode helps protect against short circuits between different nodes of the network system while the Line-to-Ground mode protects against short circuits between the network node and the earth. As it is not known where the transient will happen, having both modes protected ensures damage is minimized. Nominal Discharge Current of 5KA defines the peak value of the current that can be passed through the SPD having a waveshape of 8/20μs microsecond where the RJ45 lightning arrestor remains functional after 15 surges.

Once the surge protector ethernet voltage exceeds its designed rating it “begins to clamp” and starts to conduct energy directly to the electrical grounding system. A bidirectional clamping on CAT5 surge protector allows levels above and below the reference voltage by clamping the voltage that can cause damage.

Protector Data

- 100/1000 MbPS
- DIN 3 rail mountable or configure in the 1U rack cabinet chassis
- Protects all 4 pairs by UL rated differential gas discharge tube (GDT)
- IEEE 802.3 af/at (Transmission) Mode A & B
- Support normal and reverse PoE power polarity
- IEC 61000-4-5 (Lightning/Surge) 20KA(8/20µs)
- Nominal PoE voltage < 60V
- Shunt Capacitance < 2 pF
- Impedance 100 ohms
- Line and protected equipment bidirectional protection
- Shielded/Grounded RJ-45 jacks for line and protected equipment
- Non-Metallic UL94V0 flame rating enclosure
- IEC 61643-21, IEC61000-4-5, CORE 1089 compliant
- RoHS compliant
- REACH compliant

Clamping Voltage (Pin1-2,3-6,4-5,7-8)
Line-Line: 72 Volts
Line-Ground: 72 Volts

Nominal PoE Voltage <60 V
Maximum continuous current 1.2 A
Response time (Line-Line, Line-Ground) < 100 ns
Maximum Surge Current (8/20?s) per IEC 61000-4-5 5 KA
Shunt Capacitance < 1 pF
Standard Connectors Shielded RJ-45 Jacks * 2
PoE Mode Support Mode A and B for Power
Enclosure Material Non-Metallic UL94V0 flame rating
Operating Temperature -40°C (-40°F) to +80°C (+176°F)

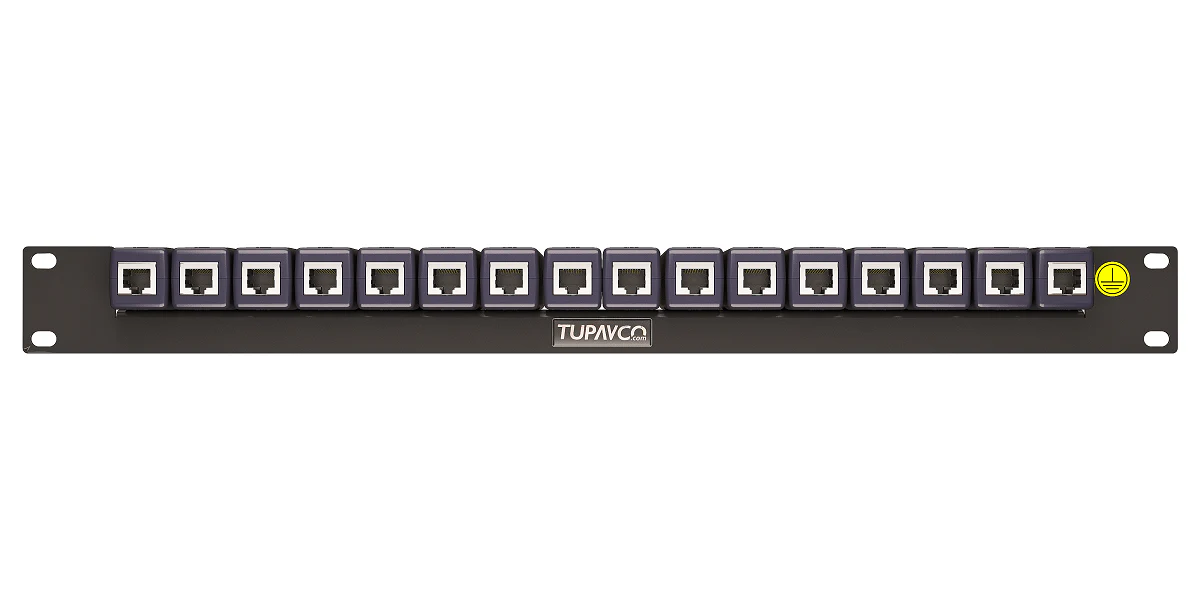

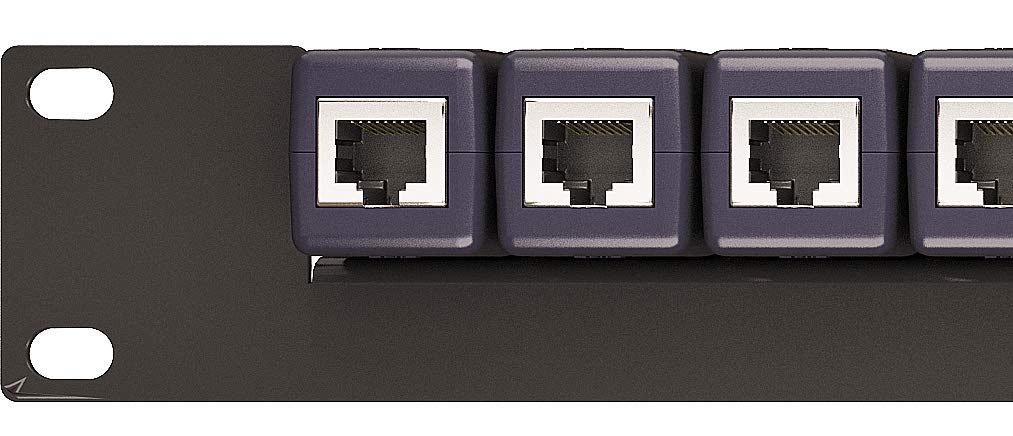

DIN Rail 19" (1U) protection rack panel data
- Holds up to 16 protection units (GbE-GUARD CSD, included)
- Chassis Material Aluminum
- Ground wire 8-inch AWG-9
- Outside Dimensions (W*L*H) 44 x 482.6 x 25 mm
